Marin Rift Zone EL XR
Marin Rift Zone EL XR
Collect In Store - To collect in store please add to cart and select the Click & Collect method at checkout. You will then receive a notification when your order is ready for store collection.
If any products are out of stock please contact the store directly for future availability.
The all-new Rift Zone EL ("Electric Light") trail eMTBs take everything you love about the Rift Zone and repurposes it into bikes that share the capability of the full-powered versions but in lighter packages.
Made possible in part by Bosch's new lightweight Performance Line SX drive unit and CompactTube internal battery, the Rift Zone EL models deliver a decidedly playful ride with a power delivery so natural you might forget it's an ebike. With all the benefits without the bulk, the Rift Zone EL is the perfect platform for those who don't require the full range and power output of more traditional eMTBs.
The flagship Rift Zone EL XR is decked out with a gamut of high performance components, including the impressive Fox 36/Float X Performance Elite suspension combo, SRAM's GX AXS wireless T-type transmission drivetrain and Magura MT-7 4-piston brakes.
| Frame | All New Series 4 Alloy Lightweight E, 140mm MultiTrac Suspension, Integrated Battery/Charging Port, 148mm Rear Thru-Axle |
| Rear Suspension | Fox Float X, Performance Elite, EVOL Air Spring, Climb Switch, Rebound Adjustment, Custom Tune, 210x55mm, 25xM8 Upper & Lower Mount |
| Headset | FSA Custom Headset, Adjustable HTA Design |
| Stem | Marin CNC, 35mm Length, 35mm Bar Bore |
| Handlebar | Marin Trail, 35mm Clamp, 7000 Alloy Bar, 800mm Length, 20mm Rise, 5 Degree Up, 8 Degree Back |
| Grip | Marin Grizzly Lock-On |
| Brake Levers | Magura MT7 with HC3 Lever |
| Brake, Front | Magura MT7 with HC3 Lever, 4 Piston Hydraulic Disc, E-Specific Pads, 203mm MDR Rotor |
| Brake, Rear | Magura MT7 with HC3 Lever, 4 Piston Hydraulic Disc, E-Specific Pads, 203mm MDR Rotor |
| Tyres | Front: Maxxis Minion DHF, 29x2.5" MAXXGRIP, Tubeless ready, EXO+, Rear: Maxxis Forekaster 29x2.4", Tubeless Ready MAXX TERRA EXO+ |
| Rims | Marin Aluminum Double Wall, 29" Diameter, 32mm Inner Rim Width, Welded Joint, Disc Specific, Tubeless Compatible |
| Hub, Front | Formula DCL-3482, 4 Sealed Bearings, 148x12, XD Driver, 6-Bolt, 32H |
| Hub, Rear | Formula DC-711, 110x15, 6-Bolt, 32H |
| Derailleur, Rear | SRAM GX AXS T-Type |
| Shift Lever | SRAM AXS Pod Infinity Mount |
| Chain | SRAM GX T-Type |
| Crankset | e*thirteen e*spec Plus Carbon, 160mm Length, 34T |
| Pedals | Marin MTB Plastic |
| Saddle | Marin Speed Concept |
| Seatpost | PNW Loam Post with Range Lever, Size S 150mm Travel, Size M-L 170mm Travel, Size XL 200mm Travel, 34.9mm |
| Motor | Bosch Performance Line SX, 600W, 55Nm |

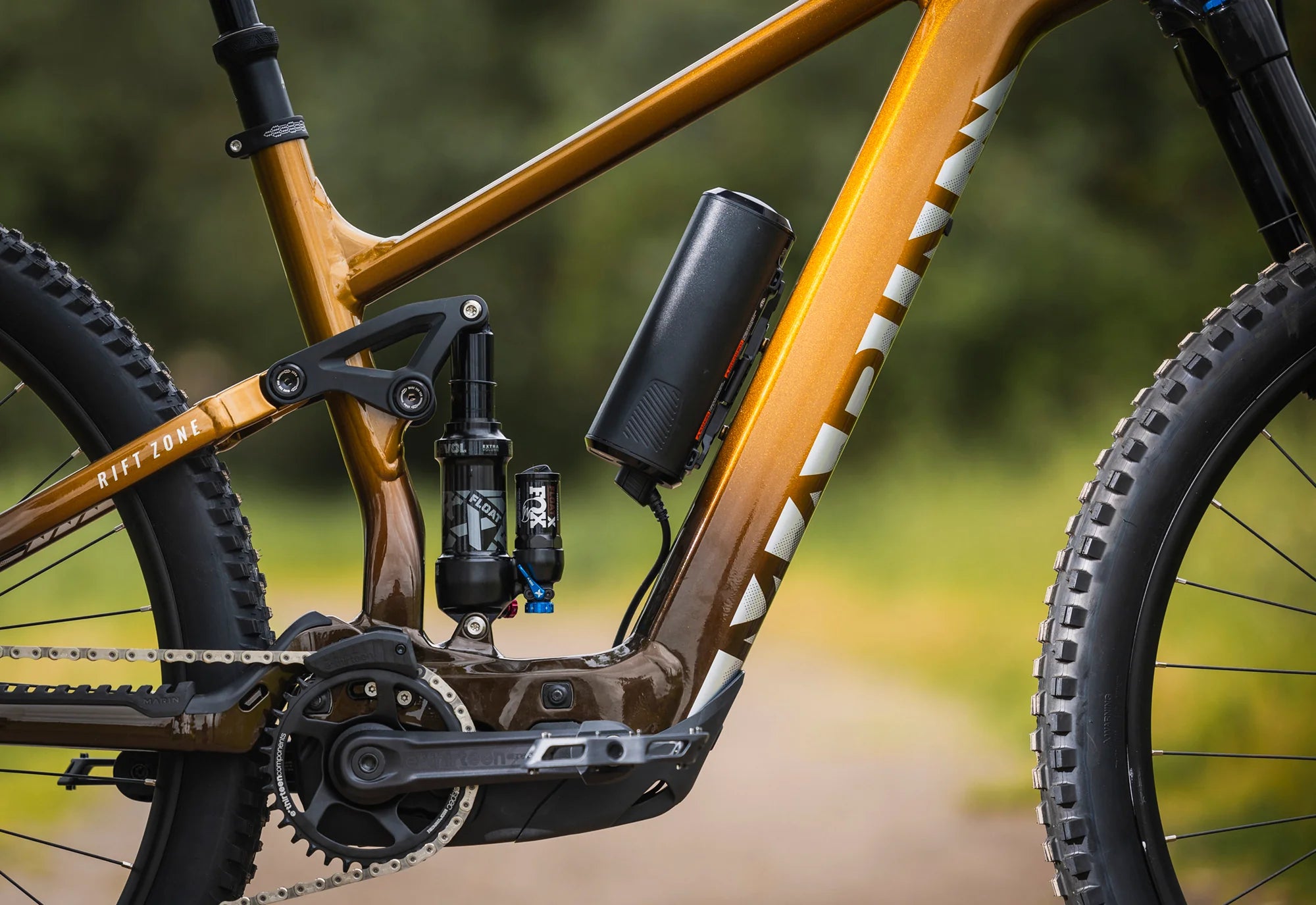

| Battery | Bosch 400 Wh Internal (Optional PowerMore 250wh external battery using PowerMore 150mm cable EB12.120.036) |

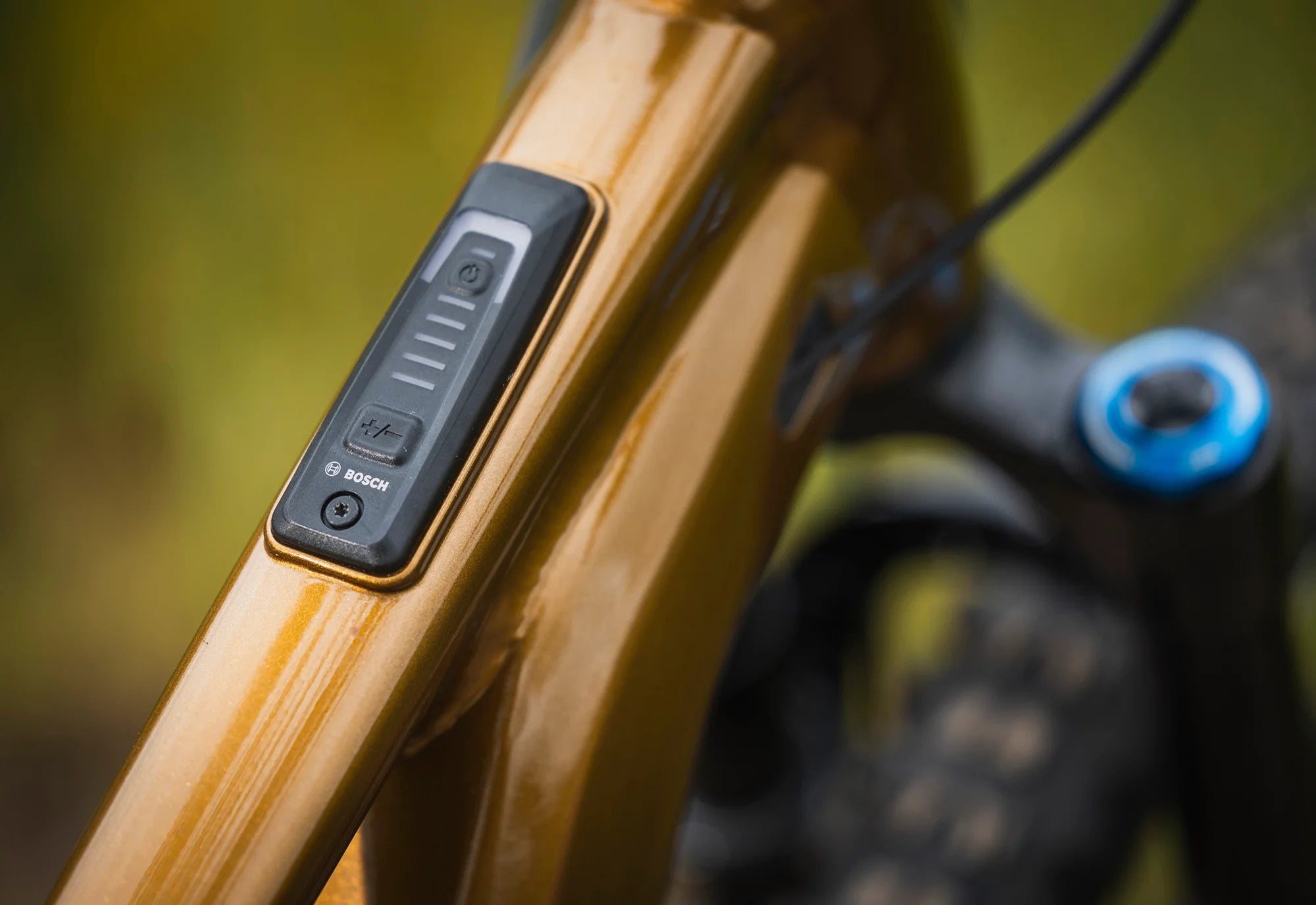

| Display | Bosch BRC3100 Systems Controller |
| Cassette | SRAM CS-XS-1275 T-Type, 10-52T |
| Front Suspension | Fox 36 Performance Elite, 150mm Travel, 29", 110x15 Kabolt, 44mm Offset |
